This scalable, multi-modal mapping engine is designed to accelerate deployment of Level 3 and Level 4 autonomy.
With a detailed knowledge of the world and everything in it, maps provide the foresight AI uses to make advanced and safe driving decisions.
At his GTC keynote, NVIDIA founder and CEO Jensen Huang introduced NVIDIA Drive Map, a multimodal mapping platform designed to enable the highest levels of autonomy while improving safety. It combines the accuracy of DeepMap survey mapping with the freshness and scale of AI-based crowdsourced mapping.
With three localization layers — camera, lidar and radar — Drive Map provides the redundancy and versatility required by the most advanced AI Drivers.
Drive Map will provide survey-level ground truth mapping coverage to 500,000 kilometres of roadway in North America, Europe, and Asia by 2024. This map will be continuously updated and expanded with millions of passenger vehicles.
Drive Map contains multiple localisation layers of data for use with camera, radar and lidar modalities. The AI Driver can localise to each layer of the map independently, providing the diversity and redundancy required for the highest levels of autonomy.
The camera localisation layer consists of map attributes such as lane dividers, road markings, road boundaries, traffic lights, signs and poles.
The radar localisation layer is an aggregate point cloud of radar returns. It's particularly useful in poor lighting conditions, which are challenging for cameras, and in poor weather conditions, which are challenging for cameras and lidars.
Radar localisation is also useful in suburban areas where typical map attributes aren't available, enabling the AI Driver to localize based on surrounding objects that generate a radar return.

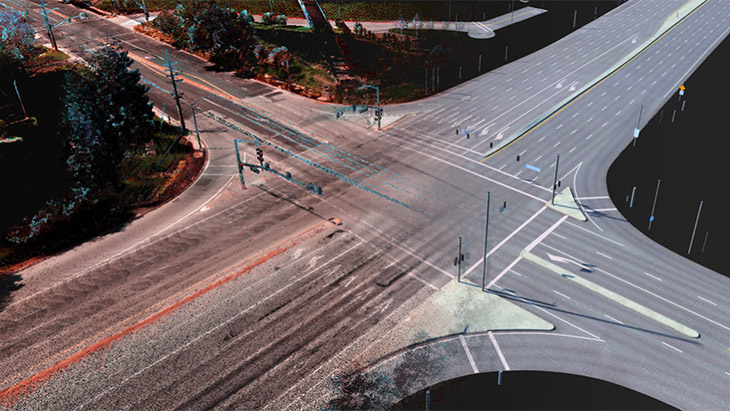

The lidar voxel layer provides the most precise and reliable representation of the environment. It builds a 3D representation of the world at 5-centimeter resolution — accuracy impossible to achieve with camera and radar.
Once localized to the map, the AI can use the detailed semantic information provided by the map to plan ahead and safely perform driving decisions.
Drive Map is built with two map engines — ground truth survey map engine and crowdsourced map engine — to gather and maintain a collective memory of an earth-scale fleet.
This approach combines the best of both worlds, achieving centimetre-level accuracy with dedicated survey vehicles, as well as the freshness and scale that can only be achieved with millions of passenger vehicles continuously updating and expanding the map.
The ground truth engine is based on the DeepMap survey map engine — proven technology that has been developed and verified over the past six years.
The AI-based crowdsource engine gathers map updates from millions of cars, constantly uploading new data to the cloud as the vehicles Drive. The data is then aggregated at full fidelity in NVIDIA Omniverse and used to update the map, providing the real-world fleet fresh over-the-air map updates within hours.
Drive Map also provides a data interface, Drive MapStream, to allow any passenger car that meets the Drive Map requirements to continuously update the map using camera, radar and lidar data.
In addition to assisting the AI to make the optimal driving decisions, Drive Map accelerates AV deployment, from generating ground-truth training data for deep neural network training, as well as for testing and validation.
These workflows are cantered on Omniverse, where real-world map data is loaded and stored. Omniverse maintains an Earth-scale representation of the digital twin that is continuously updated and expanded by survey map vehicles and millions of passenger vehicles.
Using automated content generation tools built on Omniverse, the detailed map is converted into a drivable simulation environment that can be used with NVIDIA Drive Sim. Features such as road elevation, road markings, islands, traffic signals, signs and vertical posts are accurately replicated at centimeter-level accuracy.
With physically based sensor simulation and domain randomization, AV developers can use the simulated environment to generate training scenarios that aren't available in real data.
AV developers can also apply scenario generation tools to test AV software on digital twin environments before deploying AV in the real world. Finally, the digital twin provides fleet operators a complete virtual view of where the vehicles are driving in the world, assisting remote operation when needed.
As a highly versatile and scalable platform, Drive Map equips the AI Driver with the understanding of the world needed to continuously advance autonomous capabilities.
